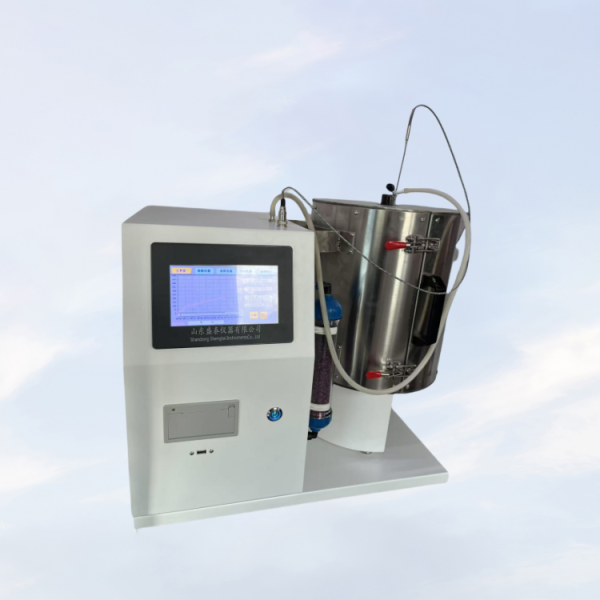

ASTM D3466 Automatic Activated Carbon Ignition Point Tester

Name: ASTM D3466 Automatic Activated Carbon Ignition Point Tester
Brand: Shengtai Instrument
Price: 8300 USD

Buy cheap ASTM D3466 Automatic Activated Carbon Ignition Point Tester product

Supply Ability : 5 cartons per week

Thermocouple accuracy : furnace temperature

Model Number : ST-63

Voltage : AC220V 50Hz

Payment Terms : T/T

Temperature resolution : 1 ℃

Flowmeter range : 0L/min-20L/min

Price : $8300

Drawing curves : automatically draws experimental curves

Carbon layer height : 25mm ± 1mm

MOQ : 1

Delivery Time : 5-7 days

Overall power : ＜ 2000W

Brand Name : Shengtai Instrument

Overall dimensions : (excluding computer) L * W * H 700mm * 430mm * 580mm

Certification : ASTM D3466

Packaging Details : (excluding computer) L * W * H 700mm * 430mm * 580mm

Place of Origin : China

Contact Now

ASTM D3466 Fully Automatic Activated Carbon Ignition Point Tester

ST-63 Fully Automatic Activated Carbon Ignition Point Tester is used to determine the ignition point of activated carbon. It is developed and manufactured in compliance with GB/T 7702.9 Test Methods for Coal Granular Activated Carbon — Determination of Ignition Point and GB/T 20450-2006.
The supporting software of this instrument is equipped with a database function. It automatically records temperature data at each time node throughout the test. After testing, users can analyze the ignition performance characteristics of the tested activated carbon sample.
Working Principle
This instrument automatically controls the test for the reference ignition point of granular activated carbon under flowing air conditions. It can accurately acquire the ignition point value, visually display the time-temperature curve and heating results, and support printing of curves and test reports. All experimental data can be saved by the instrument software.
Applicable Standards: GB/T 7702.9, ASTM D3466, JIS K1474

Key Features

Automatically controls and describes the determination of reference ignition point
Visually displays time-temperature curve and heating process results
Automatically calculates and prints fire point with experimental data
Software with database function for analysis of ignition point characteristics
Compliant with GB/T7702.9, ASTM D3466, and JIS K1474 standards

Technical Specifications

Attribute	Value
Control method	Digital tube control and computer operation
Temperature measurement range	Room temperature - 800℃
Thermocouple accuracy	Furnace temperature
Temperature resolution	1℃
Experimental time	Automatically judges results and stops experiment
Heating rate	~10℃/min before 150℃; 2-3℃/min after 150℃
Carbon layer height	25mm ± 1mm
Flowmeter range	0L/min - 20L/min
Overall power	< 2000W
Voltage	AC220V 50Hz
Dimensions (excluding computer)	700mm × 430mm × 580mm

ASTM D3466 Automatic Activated Carbon Ignition Point Tester

Packing List

S/N	Name	Quantity	Unit	Remarks
1	Host	1	set
2	Quartz burning tube	1	piece
3	Quartz particles			In host
4	Power cord	1	piece
5	Fuse tube	1	piece
6	Instructions	1	copy
7	Certificate warranty card	1	copy

Quality Assurance

• Provided instruments are brand new and comply with national quality standards

• Materials and components meet specified technical requirements

• One-year warranty for entire equipment (excluding normal wear and tear)

• Free maintenance for quality issues during warranty period

• Lifetime discounted supply of components and lifelong maintenance

• Post-warranty maintenance available at cost fee

Manufacturer: Shandong Shengtai Instrument Co., Ltd.
