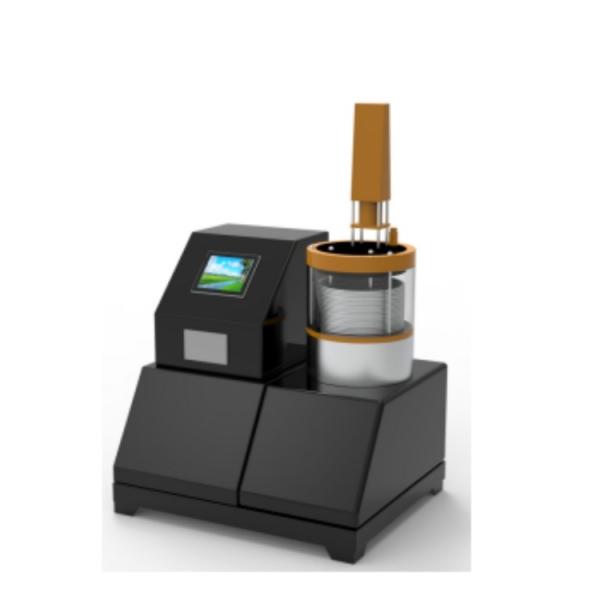

ST203B Pharmaceutical Testing Instruments Automatic Congealing Temperature Tester with 7-inch Color Touch Screen Display
ST203B automatic congealing temperature tester is designed and manufactured according to the general rule 0613 of The Chinese Pharmacopoeia in 2020 and USP41 651 congealing temperature.
Suitable for determination of the congealing temperature of medicine.
The maximum temperature at which a drug stays unchanged in a short period of time when it condenses from a liquid to a solid is determined.
Some drugs have certain condensation point, purity change, condensation point also changed.
Polyethylene glycol congealing temperature tester/Freezing point tester
Glacial acetic acid congealing temperature tester/Freezing point tester
Phenol congealing temperature tester/Freezing point tester
Chlorophenol congealing temperature tester/Freezing point tester
Stearic acid congealing temperature tester/Freezing point tester
Magnesium stearate congealing temperature tester/Freezing point tester
Dibutyl hydroxytoluene congealing temperature tester/Freezing point tester
The determination coagulate point may distinguish or examine the pure impurity degree of the medicine.
Technical parameters:
| Display | 7-inch color touch screen |
| Output | exported through the U disk |
| Working cold bath | double vacuum glass bath. |
| Standard | rule 0613 of The Chinese Pharmacopoeia in 2020 and USP41 651 congealing temperature. |
| Cold tank temperature range | -30 ℃ ~ +80℃ |
| Power supply | AC220V±10%; 50 hz. |
| Ambient temperature | ≤30℃. |
| Relative humidity | ≤85%. |
| Sample agitation | synchronous deceleration motor, 60 times/min. |
| Overall power consumption | no more than 2000W. |
| Temperature accuracy | ±0.1℃ |
| Bath liquid stirring | Automatic stirring by stirring motor, 6W power, 1200r/min. |
| Refrigeration system: | new type refrigeration compressor |
| Typing | Chinese or English character printing |
| Printer | Micro needle printer |
| Curve display | Display the trend chart of temperature time curve |
| Instrument size: 680 * 450 * 580mm Weight: 38kg |
●Using embedded system design, the whole test process automatic detection, automatic printing
●The test results can be stored ;You can view the historical data;
●Results output: at the same time can be equipped with U disk output function, output to the computer end for long-term storage
●Output format: The result U disk output format is CSV or excel.
●The result is printed on the instrument
●Account management: According to the password to set up the account management layer, can set up the total account and sub-account. (optional).
●Account management: audit tracking function and account hierarchical management, level 3 account management (optional).
●Data Management: the LIMS system is available (optional)
●Input extension: scan code input sample information (optional)
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Gel stopper | 2 | piece | Conforming to pharmacopoeia |
| 3 | Freezing point test tube | 2 | piece | |
| 4 | sensor | 2 | piece | |
| 5 | power cord | 1 | piece | |
| 6 | Printing paper | 2 | volumes | Needle printing paper |
| 7 | Certificate warranty card | 1 | copy | |
| 8 | instructions | 1 | copy | |
